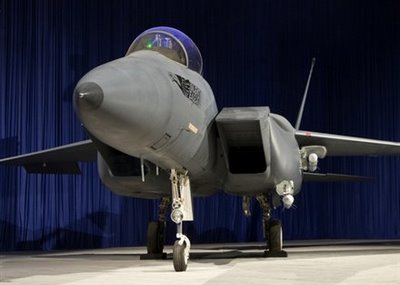

F-15SE-Silent-Eagle

Boeing F-15 Silent Eagle Specification & Technical Data

Boeing unveiled a new version of F-15 called Silent Eagle, it’s a improvised stealth version of F-15 Strike eagle. F-15 is a world-class fighter aircraft. Continuous avionics upgrades could keep it competitive with super-fighters like the F-22. But the F-22’s distinct advantage is that the airframe was designed to be stealthy from the start.

While Boeing has done a few things to the F-15 airframe to reduce its radar return (submerged weapons carriage, an exportable radar-absorbent material coating on the airframe, and outward-canted fins,) it’s still a decidedly non-stealthy airplane. It’s still not quite a fifth-generation fighter, but it’s not intended to be. For instance, the F-15SE is not going to slip stealthily into defended airspace and wipe out a surface-to-air missile battery. That’s still the job of the all-aspect stealthy F-22 or B-2.

F-15 Silent Eagle
RoleMulti-role stealth fighter
National originUnited States
Primary usersN/A
ManufacturerBoeing Defense
First flight08/07/2010
Introduction
StatusIn development
Variants
Number built1
Program cost
Unit costUS$100 million
Length63.8 ft / 19.43 m
Wingspan42.8 ft / 13.05 m
Height18.5 ft / 5.63 m
Wing area608 ft² / 56.5 m²
Empty weight31,700 lb / 14,300 kg
Maximum payload
Maximum takeoff weight81,000 lb / 36,700 kg
Powerplant2 × Pratt & Whitney F100-229 afterburning turbofans
Fuel
Maximum speedMach 2.5+ (1,650+ mph, 2,650+ km/h)
Ferry range2,400 mi / 2,100 nmi (3,900 km)
Combat radius800+ nm (720 nmi for stealth A/A mission) / (920 miles (1,480 kilometres))
Service ceiling60,000 ft (18,200 m)
Rate of climb50,000+ ft/min (254+ m/s)
Thrust/weight
Guns1× 20 mm (0.787 in) M61 Vulcan 6-barreled Gatling cannon with 510 rounds of ammunition
Air to air loadout
Air to ground loadout
HardpointsFour internal hardpoints in conformal weapons bays for low-observable capability

Boeing optimized the F-15SE to reduce the aircraft’s head-on radar cross section. That’s not going to fool a ground-based SAM radar, but it will make it harder for an enemy fighter entering the merge to lock-on to your aircraft with a radar-guided missile. Boeing optimized the F-15SE to reduce the aircraft’s head-on radar cross section. That’s not going to fool a ground-based SAM radar, but it will make it harder for an enemy fighter entering the merge to lock-on to your aircraft with a radar-guided missile. Friendly foreign air forces have to face the question of whether they need stealthy combat aircraft in their arsenals. In scenarios like Afghanistan and the 2003 invasion of Iraq, stealth was not as vital a factor as it was in Operation Desert Storm because of the enemy’s degraded air defenses.

F-15_Silent_Eagle_internal_weapons_carriage

Stealth often becomes a hindrance because internal weapons carriage reduces the overall payload the aircraft can carry. It’s interesting to see if anybody is interested in buying the F-15 Silent Eagle, especially with the price of the F-35 rising. The F-35 was designed with an “affordable” degree of stealth in mind, but it’s quickly becoming as expensive as the F-22. “Silent Eagle” is the poor man’s F-35, sacrificing the F-35‘s level of stealthiness for affordability, superior maneuverability, a higher top speed, a dual crew, and twin-engine reliability.

Japan is likely to be the target of Boeing’s F-15 Silent Eagle marketing. The Japanese already fly F-15’s but really want the F-22. With the US Congress prohibiting F-22 exports, Japan will likely settle for the F-35 unless Boeing can make a better offer (i.e., one that includes a higher degree of the plane’s production in Japan) with the F-15 Silent Eagle. Improvements in stealth over previous F-15 variants include coatings and treatments on the aircraft and there has also been a redesign of the conformal fuel tanks (CFTs) that allow for internal weapons carriage, says Boeing.

Depending on the specific mission, the customer can use the CFTs that are designed for internal carriage or change back to the traditional CFTs for optimum fuel capacity and external weapons carriage. The Silent Eagle will be able to internally carry air-to-air missiles such as the AIM-9 and AIM-120 and air-to-ground weapons such as the Joint Direct Attack Munition (JDAM) and Small Diameter Bomb (SDB). The standard weapons load used on current versions of the F-15 is available with the traditional CFTs installed. Boeing states that the aircraft’s canted vertical tails improve aerodynamic efficiency, provide lift, and reduce airframe weight. The go onto say that another aerodynamic improvement is the Digital Flight Control System, which improves the aircraft’s reliability and reduces airframe weight.

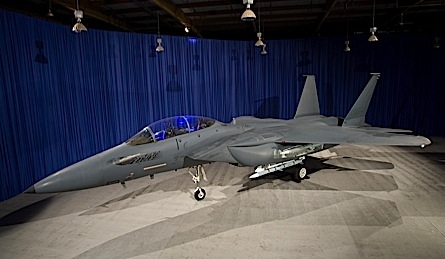

F-15SE-Silent-Eagle

Survivability improvements include a BAES Digital Electronic Warfare System (DEWS) working in concert with the Raytheon Advanced Electronic Scanning Array (AESA) radar. Boeing has completed a conceptual prototype of the CFT internal-carriage concept, and plans to flight-test a prototype by the first quarter of 2010, including a live missile launch. The design, development, and test of this internal carriage system are available as a collaborative project with an international aerospace partner. Boeing says the F-15SE can match the frontal-aspect stealth performance of the export version of the Lockheed Martin F-35 Joint Strike Fighter.

The precise level stealth allowed to be exported to foreign countries is still to be determined by the US authorities who govern technology transfer rules. Boeing says they’re not offering the F-15SE to the US Air Force, but could the single-largest F-15 customer in the world be tempted? Obviously, the USAF is committed to buying a fifth-generation-only fleet of F-22s and F-35s, but if costs, schedule delays or performance problems start mounting, could the service be driven to “settle” for improved F-15s
